The space above an office ceiling tile is mostly empty air, and most tenants never think about what sits in it. The plenum carries ductwork, cabling, and sometimes a sprinkler main, but the air volume between the tiles and the structural slab is rarely filled with anything. That makes the plenum an efficient coordination zone and, simultaneously, a weak point for both sound transmission between rooms and thermal performance at the ceiling line.
Insulation laid into the plenum above the ceiling tiles changes both of those outcomes. It is not the same conversation as the insulation inside a plasterboard partition, because the partition is closed and the plenum is open, and it is not the same as blanket ceiling insulation in a residential roof. In a commercial office, plenum insulation is a targeted fill layer that sits on top of the tile grid or along the acoustic perimeter, and the tenant decision is when it earns its cost, what it actually delivers, and where it quietly fails to deliver.
Why the plenum matters for both sound and comfort
The plenum is the shared air space above every suspended ceiling tile on a floor. In most fitouts it is continuous from one side of the floor plate to the other, interrupted only where a partition wall extends fully through the ceiling up to the slab. That continuity is the reason sound carries from one meeting room to the next even when the partition walls look solid. The tile provides some sound absorption, but the air path over the top of a partition that stops at the grid is almost unrestricted.
Thermally, the plenum behaves as an intermediate zone between the office interior and the structural slab above. The slab itself has significant thermal mass and, depending on the building, may be directly exposed to the floor above or separated from it by the next tenancy. In buildings where the floor above is a warm plant room, a sun-exposed external space, or a much colder conditioned environment, that difference translates into heat flow through the slab into the ceiling plenum and from there into the working office. The ceiling tile slows some of this transfer. It does not block it.
Plenum insulation addresses both paths. An acoustic blanket laid above the ceiling perimeter around a room closes the sound path across the plenum without requiring the partition to be extended to the slab. A thermal insulation layer laid on top of the tile grid, or fixed directly to the underside of the slab, reduces the rate at which heat crosses between zones. The two roles overlap in product selection but differ in how the insulation is placed and what benefit it delivers.
When an acoustic fill above the ceiling is the right call
Extending every partition to the structural slab is the gold-standard acoustic answer in a plasterboard wall. It closes the flanking path entirely and gives the wall the full performance of its tested system. It is also the most expensive option, particularly where the plenum carries services that have to be worked around, and it reduces the flexibility of the ceiling void for future services changes.
An acoustic blanket laid above the ceiling along the room perimeter is the practical middle path. The blanket is typically a high-density mineral wool or glass wool product, around fifty to seventy-five millimetres thick, rolled out on top of the tiles or fixed to a frame above the partition line. The combination of a well-built partition up to the ceiling grid plus a continuous acoustic blanket above it can deliver most of the performance of a true slab-to-slab wall at a fraction of the cost, provided the blanket is continuous and sealed at all junctions.
The detail that makes this fail is discontinuity. A blanket that sits neatly above the partition line but leaves gaps where services cross the plenum is effectively a partial barrier, and sound finds the gaps. The same applies where the blanket meets the perimeter of the building and the external wall junction is not closed. Tenants commissioning a fitout with plenum insulation as the acoustic strategy should make sure the install drawings show the blanket as a continuous envelope, not a set of loose mats draped over partitions and left to the installer to figure out.
When a thermal layer above the tile actually does something
Thermal insulation above a ceiling tile is a narrower case than acoustic insulation, because most commercial office floors sit between two conditioned tenancies and the thermal gradient across the slab is small. In those buildings, a thermal layer above the tile would deliver almost nothing, because there is nothing meaningful on the other side of the slab to drive heat flow.

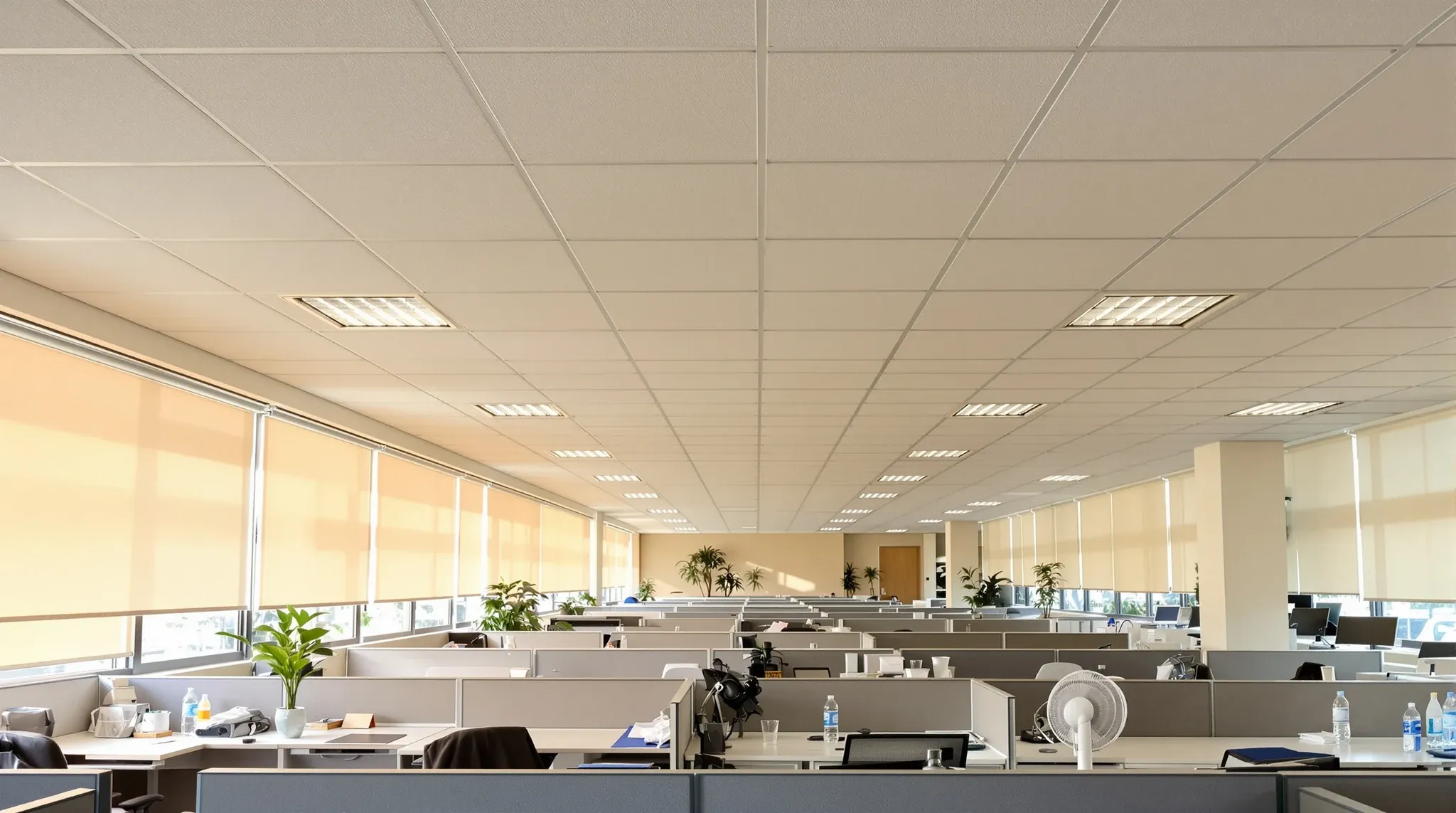

The picture changes when the floor above the office is not conditioned to the same standard. Top-floor tenancies sit below a roof deck, and the ceiling plenum is a direct buffer between the office and the external environment. Offices under rooftop plant rooms deal with both heat gain from equipment and the noise problem that comes with it. Offices under a car park deck or a warehouse space sit under a floor that does not maintain a narrow temperature band. In each of these conditions, a thermal insulation layer in the plenum reduces the amount of heat crossing into the office and changes how hard the HVAC has to work to keep the space comfortable.
The practical trigger is the HVAC load calculation. When the engineer models the floor and finds the ceiling heat gain is a meaningful share of the total cooling load, insulation above the ceiling is a cheaper way to reduce that load than increasing the chiller capacity. This sits alongside the broader set of HVAC constraints tenants commonly discover too late, most of which are less expensive to design around at fitout stage than to work around once the system is running. The tenant’s running cost over a five-year lease is lower with the insulation than without it, and the comfort delivered to staff near the walls or along the top-floor perimeter is noticeably better.
How the two roles interact in product choice
The same family of products can do both jobs, but the choice between them depends on which role is primary. High-density rock wool performs well acoustically because the fibre structure absorbs sound energy across a wide frequency range, and it performs well thermally because the dense fibres slow heat transfer. Standard glass wool batts sit slightly below rock wool on both axes but are cheaper and more widely available.
Polyester insulation is a third option, marketed primarily as a non-irritant alternative to mineral fibres. It performs adequately at mid to high frequencies and is acceptable thermally, but it is less effective at low frequencies than rock wool and is typically more expensive per square metre. In a plenum where the primary need is blocking speech from one room to the next, polyester is reasonable. In a plenum where the need is dealing with low-frequency mechanical noise or high thermal load, rock wool generally performs better.
Thickness is a secondary variable. For an acoustic blanket, fifty to seventy-five millimetres is usually sufficient; going thicker adds weight to the install without a proportional performance gain. For a thermal layer, the thickness depends on the R-value target set by the HVAC engineer, and fitting sixty or seventy-five millimetres in the plenum is usually possible without disturbing services. Anything thicker starts to compete with cabling and duct runs for plenum space and needs to be designed rather than retrofitted.
Where plenum insulation quietly underperforms
The most common failure is coverage. An acoustic blanket that covers ninety per cent of the partition line is not ninety per cent effective; it is often closer to fifty per cent, because sound travels through the ten per cent of gap as if the rest of the blanket were not there. Tenants who spend money on a plenum acoustic layer and then accept an imperfect install rarely get the outcome they paid for.
The second failure is services coordination. Every sprinkler penetration, every duct that crosses the blanket line, every cable bundle that passes over the partition creates a potential gap. Getting the install right means integrating the insulation with the services, which takes time on site and has to be planned rather than left to the tile installer at the end of the programme.
The third failure is flanking through the structure itself. Even a perfect blanket cannot close a path that runs through a steel beam, a ductwork run, or a hard floor above. Where the flanking path is structural rather than air-borne, plenum insulation will not solve it. This is where the extend-to-slab option still wins and where tenants sometimes over-invest in a plenum layer hoping for a performance it cannot deliver. Where a detailed breakdown of the flanking paths matters, the broader analysis of what actually makes a plasterboard wall perform acoustically is the complementary read.
What this means for the tenant planning a fitout
Plenum insulation is a real option in a commercial fitout, not a default. For an internal floor between two conditioned tenancies, the thermal case is usually weak, and the acoustic case depends on how many rooms on the floor need real speech privacy and whether extending partitions to slab is affordable for those rooms. On a top floor, on a floor under a plant room, or on any floor where the HVAC load calculation shows meaningful heat gain through the ceiling, a thermal layer earns its cost over the lease.
The sequence matters. Deciding on partition-to-slab versus plenum blanket for each enclosed room should happen during design, not during construction, because the difference affects framing, services routing, and the programme. Once the design is set and the services are running, adding a continuous plenum blanket retrospectively is harder and more compromised than specifying it into the build from the start. Early coordination between the acoustic brief, the HVAC brief, and the services routing is what makes the install land properly rather than becoming a set of partial fixes at practical completion.
If you are planning a Sydney fitout where ceiling acoustics or thermal performance at the ceiling line matter, and you are weighing partition-to-slab against a plenum blanket, we can help you work through which approach suits each room and how the install sequences against the rest of the build. We deliver commercial office ceilings as part of full fitouts and as standalone ceiling upgrades, so the plenum decision sits inside the rest of the scope rather than as a separate specialist line.
